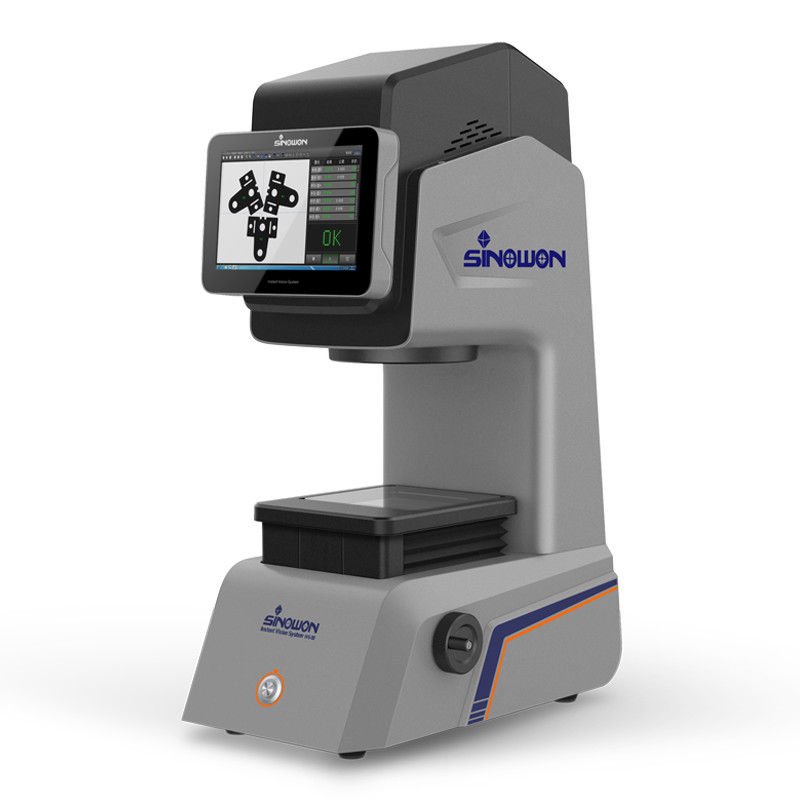

Instant Vision Measuring System IVS-30

1. Product Application:

It is widely used in quick batch measurement of precision screws, precision springs, gears, cell phone case, cell phone glass, precision metal parts and other parts in small size.

2. Product Characteristic:

High accuracy and excellent repeatability

● High depth of field, low distortion double telecentric lens, no need to repeat focus.

● Software processes the image by the way of Sub-pixel edge detection and automatic removal of burrs and outliers and the least-square method to ensure accuracy.

Friendly operation

● Automatic location and orientation correction, automatically detect and measure based on the recorded shape of the sample, measure with a click of button.

Efficient batch measurement

● Automatically identify multiple parts, test elements, then conduct automatic measurement, satisfied with batch measurement requirements.

● Entire image, no need to move the working stage, both high efficiency and high accuracy.

● Improve efficiency, save labor cost, eliminate operator error.

Quality Control and Statistical Process Control (SPC)

● Automatic memory and output measuring values, and make test data simple applied.

2.1Perfect Accuracy

Recover the original dimension with high accuracy

● Double telecentric lens and high depth of field, allow height difference in sample, section with slope or curvature and other difficult measuring elements. And low distortion without having to worry about sample placement and blurred focus, and recover the original dimension with high accuracy.

● Low distortion lens, clear edge image, no distortion, eliminate measuring error.

● Software with sub-pixel (Sub Pixel), least-square method regression algorithm and high video compensation to ensure accuracy.

2.2 Efficient Batch Measurement

● Takes only 2~5 seconds to measure dozens of position, 99 measurements can be conducted at a time within the measuring range, it significantly shortens the measurment time and improve measurement efficiency.

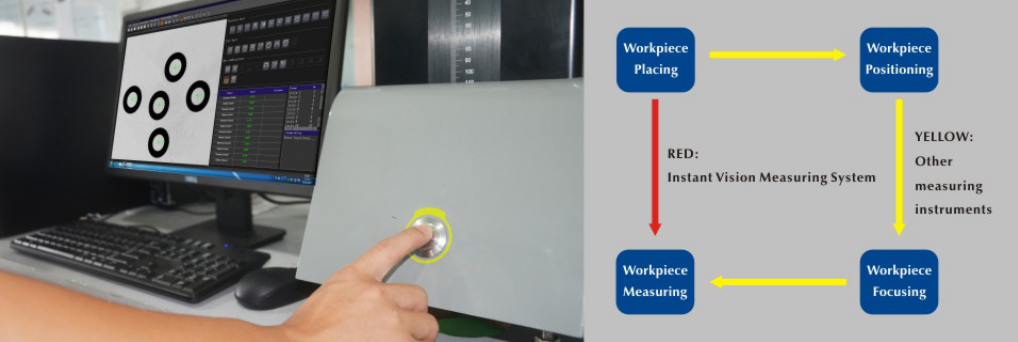

2.2.1 Workpiece Placing——No location and fixture requirements, anywhere within the effective range of the lens.

2.2.2 Workpiece Positioning——Automatic location and orientation correction, automatically detected and measured based on the recorded shape of the sample.

2.2.3 Workpiece Focusing——Double telecentric lens, long working distance, allow height difference;

2.2.4 Workpiece Measuring——Entire image reduces the time of import programe, moving worktable and lens.

2.2.5 Batch Measurement——Software is for automatic saving shape of specimen, automatic positioning, direction detecting, the coordinate origin for repeated measurements.

● Takes only seconds to measure dozens of position, 99 measurements can be conducted at a time within the measuring range.

● Simultaneous measurement can be conducted multiple identical specimens within the perspective.

2.3 Entire Image

No need to move working stage, efficient and high accuracy

2.3.1. Traditional measuring instruments have narrow field of vision, can only test one position at a time, and it requires to move working stage and position specimen before measuring.

2.3.2 Traditional measuring instruments repeatable steps and more time-consuming and complex to operate.

2.3.3 Traditional measuring instruments need to consider the accuracy of supporting hardware, such as, linear scales, working stage mounting accuracy, etc.

It can image overall within the maximum range of the measuring field, measurement of multiple sizes can be finished at once, greatly improve efficiency, save time and cost of production. Meanwhile, it meets customers’ idea "without mosaic, overall image".

2.4 Friendly Operation, Low Costs.

High efficiency, save labor cost, eliminate operator error.

2.4.1 No fixture, location, correction, focus, lighting, running control requirements, automatically measure within the maximum range of the measuring field, greatly improve efficiency.

2.4.2 Anyone can operate, general workers can meet the requirements, high efficiency, save labor cost.

2.5 Effectively Eliminate Operator Error

Avoid operated method, specimen placing, measuring sequence, eliminate the operator error efficiently.

2.6 Simple Application

2.6.1 Automatically record and output the measured values to WORD, EXCEL, TXT documents and SPC statistics and analysis which makes it easy for the test data application.

2.6.2 It can set tolerances, when measurement exceeds the tolerance, it has automatic alarm and automatically SPC statistics and analysis and output the reports.

2.7 Support Reverse Engineering:

Imported DXF files by software can be measured, graph and data can also be exported from the software for DXF files for other applications.

3. Specifications:
