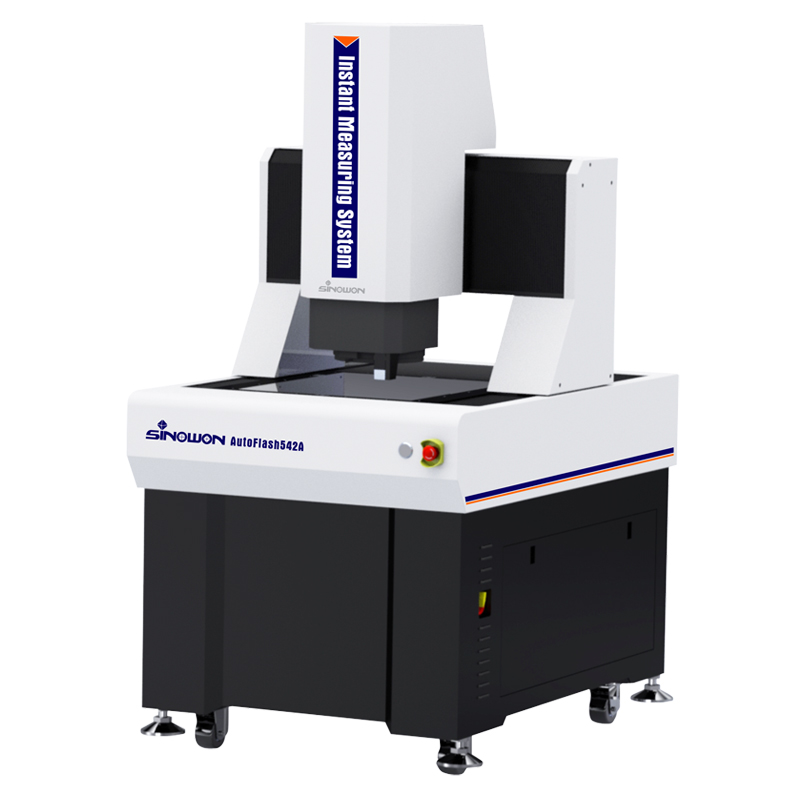

Mobile Bridge Instant Vision Measuring System AutoFlash542

Product Introduction:

The AutoFlash series is a high-precision, fully automatic Instant Vision Measuring System with a gantry structure, developed specifically for GD&T measurements with three-axis automatic electric control. It is equipped with automatic focusing, automatic lighting control, and automatic movement configuration of both hardware and software, allowing for fast and accurate measurement of linear and geometric dimensions. The mobile bridge structure ensures that the measured workpiece remains stationary, ensuring measurement accuracy and stability, making it suitable for measuring in industries such as electronics, medical equipment, LCD, and aerospace.

Product Characteristic:

• Equipped with a 20 million pixel camera and a dual telecentric lens with double magnification, the imaging quality is excellent;
• The high telecentricity design below 0.02° ensures measurement accuracy for products with significant height differences;
• The low TV distortion below 0.01% and the uniformity of distortion over the entire image ensure the dynamic repeatability accuracy of the measurement;
• The dual magnification design enables efficient measurement with a large field of view and high-precision measurement with high magnification, satisfying customers' dual needs for efficiency and accuracy;
• The XYZ three-axis CNC fully automatic precision control ensures accurate positioning;
• The use of an Indian marble base and column provides good stability;
• Precision linear guides, ground ball screws, AC servo motors, etc., ensure the accuracy and stability of the motion system;
• The 0.1μm high-precision linear scale ensures the positioning and measurement accuracy of the system;
• Equipped with various light sources and an intelligent lifting function to adapt to various measurement scenarios;
• The powerful and easy-to-use Geomea measurement software enhances quality control;
• Automatic measurement programs can be set up to efficiently and quickly complete batch measurements;
• Optional non-contact white light sensors can be used to measure thickness, flatness, etc.

Application:

• It can be applied to precision measurement of large-sized objects
• 3C industry: mobile phone screens, mobile phone cases
• Electronic industry: PCB boards
• New energy: lithium batteries
• Automotive industry: precision parts

Specifications:

Product Configuration Model Description (Example with AutoFlash542):

Instant Vision Measuring System Models and Specifications:

Instant Vision Measuring System Measurement Space Guide Table:

Other travel specifications can be customized according to customer needs.
