Video Microscope VM-7513
Product Introduction:
Video microscope is a fixed frame fixed magnification monocular
video microscope, using a unique elimination of stray light and
large depth of field technology, with clear imaging, strong stereo
and long working distance, wide field of view, etc., and
high-definition color CCD and monitor or computer matching use.
Product Features:
● Measurement/photography/video functions, compatible with 256M-32G
U disk of various brands;
● 2 million pixel progressive scan high definition images with
excellent color reproduction performance;
● Images are stored without compression to ensure the best image
quality;
● Convenient mouse interface with powerful OSD menu, exactly the
same as operating a computer;
● HDMI output port, supporting all HDMI displays on the market;
● Magnification 10~200 times;
● Precise measurement function, can support line, circle, angle,
rectangle and other kinds of measurement;
● 12 sets of crosshairs horizontally and vertically, very
convenient for setting crosshairs and measuring operations;
● 2 million pixels progressive scan high definition image,
excellent color reproduction performance；
● Automatic saving of all parameter settings;
● Unique SENSOR dustproof structure design,beautiful overall
product shape.
Product Applications:
This product can be used in a wide range of fields, such as
microelectronics, molds, powder metallurgy, precision machinery,
jewelry, clocks and watches, jewelry, fingerprint identification,
ticket identification, printing, fiber optics, cell phone repair,
archaeology, biological anatomy, and school demonstration. It is
especially suitable for observing the microstructure of the surface
of large objects.
Technical Parameters:
| Commodity | Video Microscope |
| Model | VM-7513 |
| Code# | 451-141 |
| Microscope Magnification | 10~200X |
| Main Objective Lens | 0.7X-4.5X |
| Photographic Eyepieces | 0.5X |
| Lift Range | 240mm |
| Handwheel Focus Range | 50mm |
| Center Distance | 150mm(Standard) |
| Column Diameter | 32mm |
| Data Interface | VGA/HDMI Interface |
| Lens Interface | C/CS Interface |
| Lens Interface Diameter | 76mm |
| Camera Parameters | SENSOR Size | 1/2.8" Color |
| Effective Pixel | 1600H×1200V(2 million image elements ) |
| White Balance | Manual White Balance / Auto White Balance |
| Color Mode | Color, Monochrome, Sepia, Negative |
| Scanning Method | Progressive Scan (electronic rolling shutter) |
| Exposure Control | Automatic/Manual |
| Mirroring Function | Support Up and Down, Left and Right Mirroring |
| Programmable Control | Image Taking, Exposure Time, GAMMA, Contrast, Sharpness, R/G/B
Gain, Color Saturation, Screen Flicker Elimination |
| OSD | Support English / Simplified Chinese / Traditional Chinese Menu |
| Parameter Saving Function | Exit menu auto save Can save 5 groups of parameters |
| Mouse Cursor Style | Arrows/Full Screen Crosshairs |
| Measurement Function | Straight line length measurement, circle diameter, circumference,
area measurement, rectangle length width, circumference, area measurement, polygon perimeter, area measurement, circle
center distance (circle center to circle center distance)
measurement, ellipse perimeter area measurement, circular arc arc,
arc length measurement, angle measurement within the circle, angle
measurement, a set of screen scale (can be arbitrarily moved
position and set the scale) |
| Storage Function | Can set the file name to store the date, and save the marking line,
measurement graph, marker, scale with the picture |
| Marking Line | 12 sets of crosshairs with arbitrary mouse-moveable position and
menu fine-tuning. 3 sets of circle markers with arbitrary
mouse-moveable position and menu fine-tuning. One group of circle
scale (360°/1 group) Two angle lines 0 to 180 ° adjustable, step:
0.1 ° can set 6 colors |
| Total Height of Bracket | 240mm |
| Base Size | 320x260x16mm |
| Auxiliary Objective | 0.5X,2X( Selection ) |
| Optional | Universal Bracket |

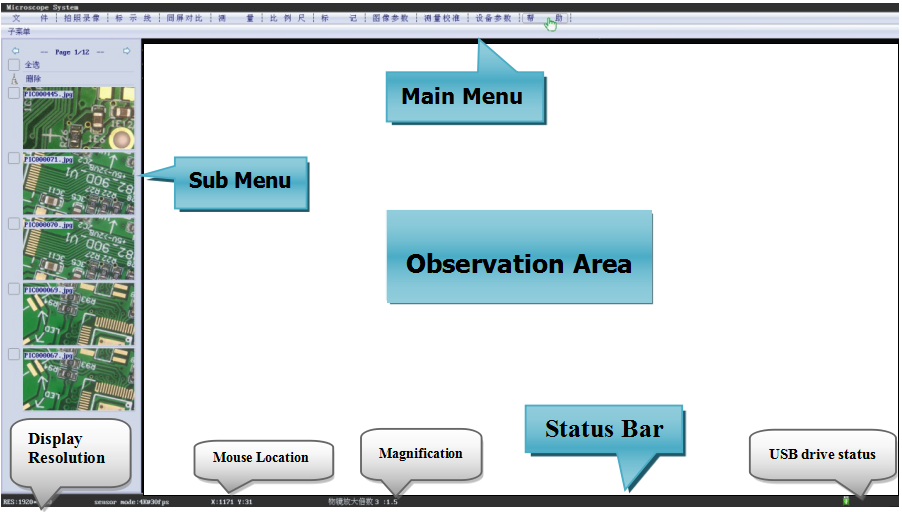

Measurement Function Introduction:
The main function modules of the main catalog include: file, photo
and video, marker line, same screen comparison (supported by some
models), measurement, scale, marker, image parameters, measurement
calibration, device parameters, help, etc.
Support straight line length measurement, circle diameter,
perimeter, area measurement, rectangle length width, perimeter,
area measurement, polygon perimeter, area measurement, circle
center distance (circle center to circle center distance)
measurement, ellipse perimeter area measurement, arc arc radius,
arc length measurement, circle inside angle measurement, angle
measurement, a set of screen scale (you can move the position and
set the scale arbitrarily), etc.
