    Trinocular Inverted Metallurgical Microscope 5X 10X 20X 50X 100X Objective IMS-340

    Ask Lasest Price
    Brand Name : SINOWON
    Model Number : IMS-340
    Certification : CE
    Price : Can be discussed
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets/Month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    Trinocular Inverted Metallurgical Microscope 5X 10X 20X 50X 100X Objective IMS-340

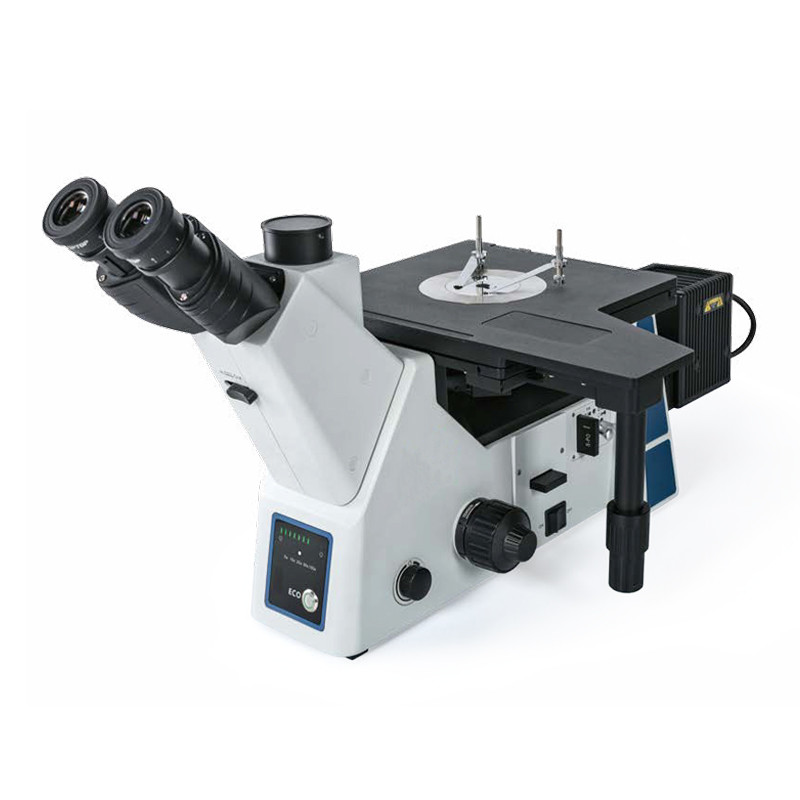

    Inverted Metallurgical Microscope IMS-340

    Trinocular Inverted Metallurgical Microscope 5X 10X 20X 50X 100X Objective IMS-340

    Product Introduction:


    IMS-340 with new designed infinity optical system, can be applied for industry research as forging, smelting, heat treatment, and inspection of raw material.


    Features:

    • Comfortable and simple operation

    Low position operating knobs 360 degree rotatable viewing head, according with ergonomical design, reduce the fatigue from long-time use.

    • Stable frame with outstanding design

    Metal casting frame with corrosion and wear resistance technology, ensures a solid and durable microscope.Built-in magnet for hexagonal wrench keeping, small designs are the most practical.

    • Front magnification display

    With built-in sensor in nosepiece, the objective magnification on using is visible from the front plate.

    • Intelligent ECO system

    With environmental and economic ECO infrared sensing system, the microscope is preset to be shutdown when there is no operator within limited time.


    Technical Specifications:


    CommodityInverted Metallurgical Microscope
    ModeIMS-340
    Code#431-155
    Optical systemInfinity color correct optical system
    Viewing head45 degree inclined trinocular viewing head, 360 degree rotatable; Interpupillary distance 50-75mm, binocular:trinocular=100:0 or 0:100
    EyepieceHigh eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable
    High eye point wide field plan eyepiece PL15X/16mm, with adjustable diopter, reticle attachable
    ObjectiveLong working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, 100X
    Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, 100X
    NosepieceInward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor
    Inward quintuple bright & dark field nosepiece (DIC slot), withbuilt-in magnification sensor
    FrameReflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture
    diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display
    IlluminationExternal power adapter, input 100V-240V, output 15V13.4A, lightintensity adjustable
    StageThree layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob
    Camera adapter0.35X, 0.5X, 0.65X, 1X focusing C-mount
    OthersPolarizer, fixed analyzer, 360 degree rotatable analyzer, DIC attachment, filters, high precision micrometer
