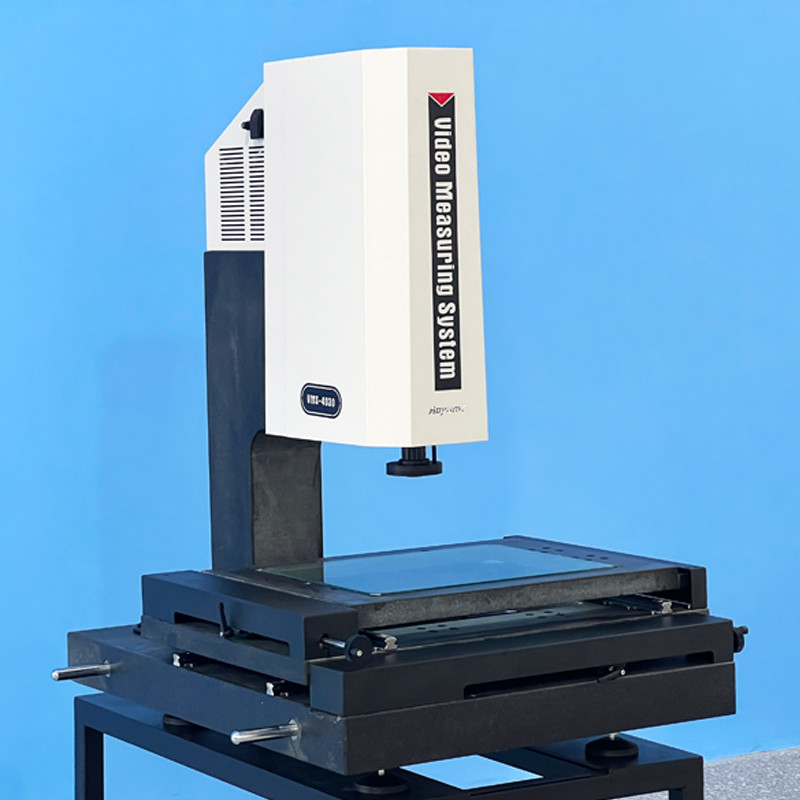

Video Measuring System VMS-4030 Series

Product Characteristic:

● Adopt granite stone base and column to ensure the stability and precision of the machine;

● Adopt toothless polished rod and fast-moving locking device to ensure that the return error of the table is within 2um;

● Adopt high-precision instrument optical ruler and precision worktable to ensure the accuracy of the machine is within ≤3.0+L/200um;

● Adopt zoom lens and high-resolution color digital camera to ensure clear picture quality without distortion;

● Using the program-controlled surface 4-ring 8-area LED cold illumination and Contour LED Parallel Illumination as well as a built-in intelligent light adjustment module, the area brightness of the light in the 4-ring 8-area can be freely controlled;

● iMeasuring Vision measurement software improves quality control to a new level;

● Optional contact probe and three-dimensional measurement software can be used to upgrade the machine to a contact three-dimensional measuring machine.

● It can be upgraded to install an autofocus function module to achieve accurate semi-automatic measurement.​

Technical Specifications:

Product Configuration Model Description (Example with VMS-4030)

Model and Specification of Manual Video Measuring System:

The Measuring Space of VMS Series of Vision Measuring System:

Structural Drawings:

We are one of China authorized hi-tech manufacturer of metrology instrument verified by ISO9001:2015, we mainly research, develop, produce, and sell geometric dimension measurement instruments and precision devices such as multisensory coordinate measuring machines, fully automatic vision measuring machines, 2D optical measuring machines, profile projectors (optical comparators), tool microscopes, video microscopes, and precision displacement platforms since year 2006. We have already delivered and installed more than 10,000pcs of instruments to more than 5000 customers in more than 60 countries and regions, more and more international famous manufacturers choose us as the qualified supplier of quality control machines, and our service engineers have already visited USA, Canada, Mexico, Germany, Holland, France, Poland, Hungary, Czech, Turkey, Korea, Malaysia, Thailand, Philippine, Viet Nam, Singapore, Austria, India to install our instruments at customers’ site.

Own 8000 square meters of factory and office builHoyamo & Sinowon is headquartered in Dongguan City, Guangdong Province, China, with office, show room and testing room. The factory is located in Jiangmen City. The facility is a 4-story building, which includes distinct areas such as QA/QC inspection room, profile projectors production workshops, manual and automatic vision measuring machine production workshops, and the warehouse.

Keep strictly control of quality.
To achieve strict control over product quality and steadily increase production output, we imported one Zeiss coordinate measuring machine, one Renishaw XK-10 laser interferometer, three XL-80 laser interferometers for quality controlling, and several production equipment such as the JINKE JLK1177 vertical machining center.

Nice products, high-quality, excellent ROI if you work with us.
Since our establishment in 2006, our original intention has not changed. We take each year as a step and continuously improve our product quality and research and development capabilities. Currently, the accuracy of our 2D optical measuring machine SinoVision series can reach 1.2+L/200 microns.
Creating value for society, creating opportunities for employees, and creating wealth for society are the unwavering pursuits of Hoyamo & Sinowon.

We continuously improve the capabilities of research and development, production, quality control, and service solve problems for users, and create value for customers.
Your precision is our mission. Let us work together to develop and create a green earth and transparent inspection for our geometric life.
