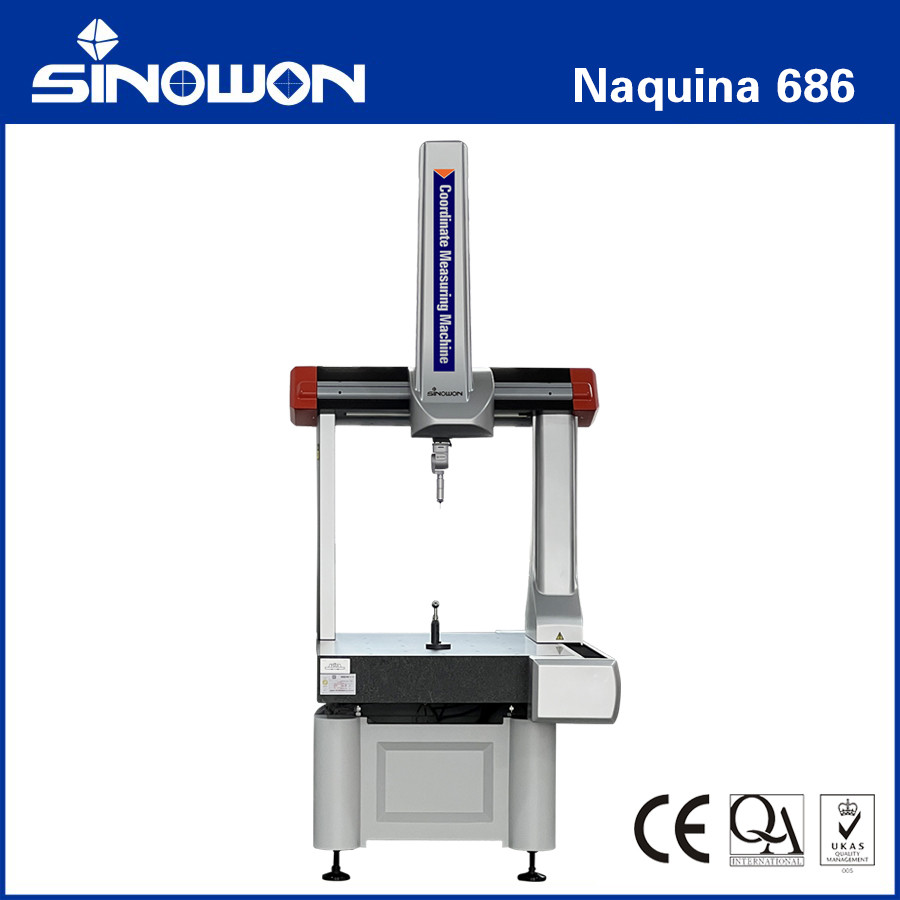

Moving Bridge Coordinate Measuring Machine Naquina 686

Technical Description

Technical Highlight:

• Distinctive TRICISION^TM bridge design for X beam provides optimum stiffness-to-mass ratio. The light alloy bridge is 25 percent stiffer than traditional designs and the X rail has a 50 percent lower center of gravity for smooth, precise movement. Wider bearing separation than competitive bridge designs assures improved control of bridge axis roll for precise volumetric measuring accuracy, reduced repeatability errors, increased acceleration/deceleration and greater measuring throughput.

• Patented precision-machined dovetail guideway in Y axis improves CMM’s accuracy and repeatability.
• All machine axes’ transmission mode is timing belt, whose compact, nonskid structure makes it has excellence of high speed, low noise and easy maintenance.
• Pneumatic counterbalance (adjustable) for Z axis, which makes Z axis operate stably, with automatic brake on emergency condition and keep CMM in safety.
• The scales (gold and steel) of German Heidenhain are certified by PTB (Physikalisch-Technische Bundesanstalt), a German national institute of science and technology. Their excellent veracity and coherence of thermal expansivity ensure the exact and stable thermal compensation.
• Remote mounted drive motors reduce moving mass for faster setting, and dissipate heat away from the machine frame.
• Equipped with the Naquina scanning control system,Inspector can achieve continuous scanning with Leitz X1 scanning probe.
• Equipped with the powerful measuring software(RationalDMIS)which second to none, Inspector can handle any common shop measurement and inspection tasks.

Pecifications:

We are one of China authorized hi-tech manufacturer of metrology instrument verified by ISO9001:2015, we mainly research, develop, produce, and sell geometric dimension measurement instruments and precision devices such as multisensory coordinate measuring machines, fully automatic vision measuring machines, 2D optical measuring machines, profile projectors (optical comparators), tool microscopes, video microscopes, and precision displacement platforms since year 2006. We have already delivered and installed more than 10,000pcs of instruments to more than 5000 customers in more than 60 countries and regions, more and more international famous manufacturers choose us as the qualified supplier of quality control machines, and our service engineers have already visited USA, Canada, Mexico, Germany, Holland, France, Poland, Hungary, Czech, Turkey, Korea, Malaysia, Thailand, Philippine, Viet Nam, Singapore, Austria, India to install our instruments at customers’ site.

Own 8000 square meters of factory and office builHoyamo & Sinowon is headquartered in Dongguan City, Guangdong Province, China, with office, show room and testing room. The factory is located in Jiangmen City. The facility is a 4-story building, which includes distinct areas such as QA/QC inspection room, profile projectors production workshops, manual and automatic vision measuring machine production workshops, and the warehouse.

Keep strictly control of quality.
To achieve strict control over product quality and steadily increase production output, we imported one Zeiss coordinate measuring machine, one Renishaw XK-10 laser interferometer, three XL-80 laser interferometers for quality controlling, and several production equipment such as the JINKE JLK1177 vertical machining center.

Nice products, high-quality, excellent ROI if you work with us.
Since our establishment in 2006, our original intention has not changed. We take each year as a step and continuously improve our product quality and research and development capabilities. Currently, the accuracy of our 2D optical measuring machine SinoVision series can reach 1.2+L/200 microns.
Creating value for society, creating opportunities for employees, and creating wealth for society are the unwavering pursuits of Hoyamo & Sinowon.

We continuously improve the capabilities of research and development, production, quality control, and service solve problems for users, and create value for customers.
Your precision is our mission. Let us work together to develop and create a green earth and transparent inspection for our geometric life.
