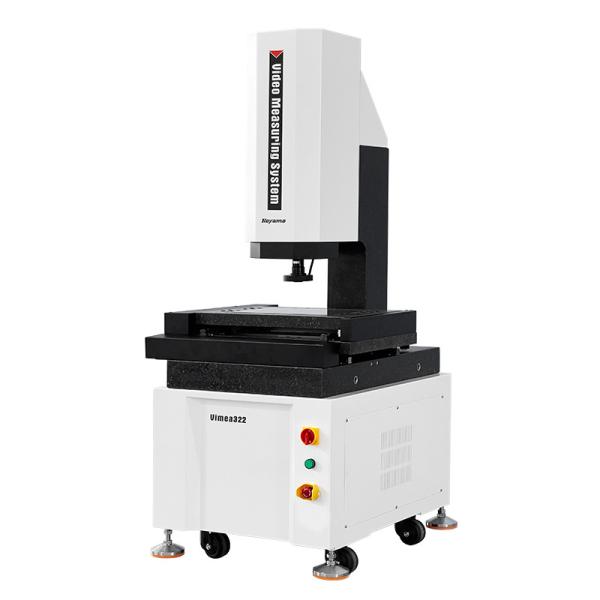

Cantilever Automatic Video Measuring System Vimea322 Series

Product Characteristic:

1.XYZ three-axis CNC automatic precision control, precise positioning;

2.Granite base and pillar, good stability;

3.Precision linear guides, grinding-grade ball screws and AC servo motors, etc., ensure the accuracy and stability of the motion system;

4.0.5μm high-precision grating ruler to ensure the positioning accuracy and measurement accuracy of the system;

5.High-resolution digital camera to meet the needs of clear observation and precise measurement;

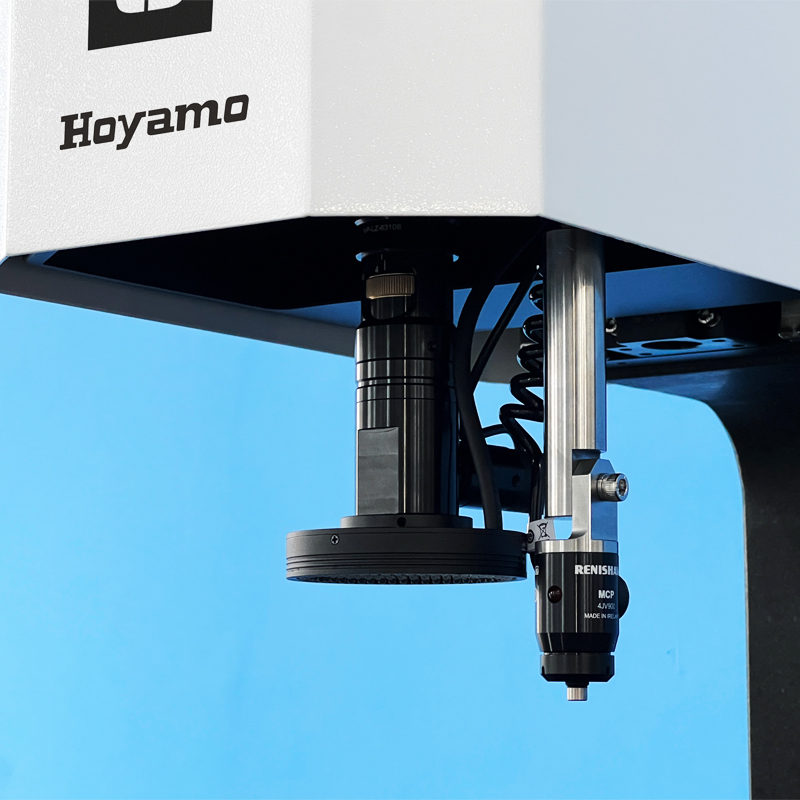

6.6.5X high-definition optical lens, accurate zoom, one-time pixel correction;

7.Program-controlled 5-ring 8-area LED surface illumination and parallel LED contour illumination system intelligently realize 256-level brightness adjustment;

8.The automatic Vision measurement software iMeasuring with powerful functions and easy to operate.

Specifications:

Note:

L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

Magnification is approximate value, it is related to the dimension of monitor and resolution.

0.5X or 2X objective is optional available according to the needs.

Product Configuration Model Description (Example with Vimea322):

Cantilever Automatic Video Measuring System Models and Specifications:

Cantilever Automatic Video Measuring System Travel Guide Table:
