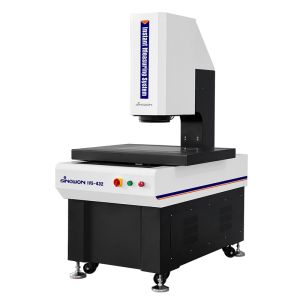

Instant Vision System QuickMea Series

Product Characteristic:

Benchtop Instant Measurement System

● Table structure, compact size, easy to handle.

● One-Button Measurement,can also be matched with IO signal to achieve automatic measurement.

● The report can be uploaded automatically into data management system.

High Precision Measurement Under Surface Light
● Equipped with Double Magnification Telecentric Lens and two 20MP camera, auto multi-angle surface light and optional coaxial surface light.
● With the independent powerful AI edge calculation algorithm, it can easily realize precise edge searching on the surface and filter invalid areas for boundary clutter.
● The measurement repeatability of surface light can also reach the similar level as that of bottom light.

Fast Measurement And Easy Operation
● Not need positioning for measuring samples, samples can be placed in any position.

● Can measure 100 dimensions, 512 features in one second, greatly reducing the measurement time.

● The operation interface of the software is simple and easy to be understood, and the measurement program and parameter setting can be easily written.

● With automatic focusing, eliminate errors caused by focal lengths.

● Automatic positioning and automatic measurement function, anyone operation can obtain stable measurement results with one button.

Convenient | One-Button for Measuring

Powerful Hardware Combination | High Precision Measurement

Equipped with Low Aberration Double Magnification Telecentric Double Lens and two 20MP camera, auto multi-angle surface light and optional coaxial surface light. With the independent powerful AI edge calculation algorithm, it can easily realize precise edge searching on the surface and filter invalid areas for boundary clutter. The measurement repeatability of surface light can also reach the similar level as that of bottom light.

Low Aberration Double Magnification Telecentric Double Lens

The design of the telecentric lens reduces optical aberrations, making the image more realistic and accurate, which is especially important for applications requiring high-precision measurements, where the workpiece can be placed at random to obtain accurate measurement results.

Automatic optical focusing

Equipped with dual telecentric optical lens, it can automatically focus according to the measurement position, reducing personnel adjustment time.

New large format screen image, more pixels per unit size for higher accuracy

Higher imaging precision compared to traditional lens.

20MP High-Precision CDD

Using a 1’’20-megapixel black-and-white camera, the number of pixels has been increased to two times that of traditional models, and the tiny edges that were difficult to observe in the past can also be observed. With movable measurement, field of view switching, the system can achieve high precision and wide field measurement, while improving accuracy and shortening measurement time.

Dual field-of-view switchable optical system

Achieve large field of view and high precision simultaneous measurement, faster and smarter.

Sub-pixel image processing

Split 1 pixel into 100 equal parts for detection of edges and calculate.

Automatic removal of abnormalities

Automatically remove abnormalities when the extracted edges have burrs or defects

Adjustable Light Source

Set multiple lighting units into one with lifting multi-angle surface light. The software is equipped with light automatic adjustment function. Through the built-in brightness sensor for different ambient light source, the system can automatically adjust to the best lighting conditions.

Extensive lighting system

Equipped with multiple variable optical illumination systems, the surface light support is raised and lowered, suitable for a wide range of measurement field quantities.

New self-developed software

The Quickmea software, the professional vision measurement software, is developed by Sinowon independently, with independent intellectual property rights. The Quickmea software equips with friendly user interface, powerful and practical function. It is convenient to operate quickly. Moreover, it can be customized according to the user's requirement, so as to improve work efficiency more effectively.

Function Introduction

Specifications:
